SusDiagnosticsPanel

Editor / development overlay — UI tree, stats, and props inspector for Sus components.

Package

SusKit · Devtools (commercial)

SusKit · Devtools

Props

Name	Type	Default
`Visible`	`Prop<bool>`	`false`
`RefreshInterval`	`Prop<float>`	`2f`

Slots

No slots.

Events

No public events.

Style hooks

USS class contract — override appearance without touching C#. States toggle via these classes:

sus-diag-panel
sus-diag-panel__close-btn
sus-diag-panel__content
sus-diag-panel__dump
sus-diag-panel__header
sus-diag-panel__header-title
sus-diag-panel__hint
sus-diag-panel__resize
sus-diag-panel__stat-key
sus-diag-panel__stat-row
sus-diag-panel__stat-val
sus-diag-panel__tab
sus-diag-panel__tab--active
sus-diag-panel__tab-content
sus-diag-panel__tabs
sus-diag-panel__tip
sus-diag-panel__tree-row
sus-diag-panel__tree-row--faded
sus-diag-panel__tree-row--hidden
sus-diag-panel__tree-row--selected
sus-diag-panel__tree-row--sus
sus-diag-panel__tree-row--ve

Usage

Set RootElement to the tree to inspect, then toggle Visible.

csharp

var panel = new SusDiagnosticsPanel();
panel.RootElement = canvas; // or app root VisualElement
panel.Visible.Value = true;
panel.RefreshInterval.Value = 2f;
host.Add(panel);

xml

<template>
  <sus:SusDiagnosticsPanel :Visible="Show.Value"
                           :RefreshInterval="Interval.Value" />
</template>

<script>
public Prop<bool> Show = new(true);
public Prop<float> Interval = new(2f);
// Assign RootElement in code (panel.RootElement = …).
</script>

Prop / field	Role
`Visible`	Show / hide the panel
`RefreshInterval`	Auto-refresh period (seconds); tree skips rebuild if snapshot unchanged
`RootElement`	Root `VisualElement` to walk (code)
`TargetComponent`	Optional focus for Props tab (code)

Notes

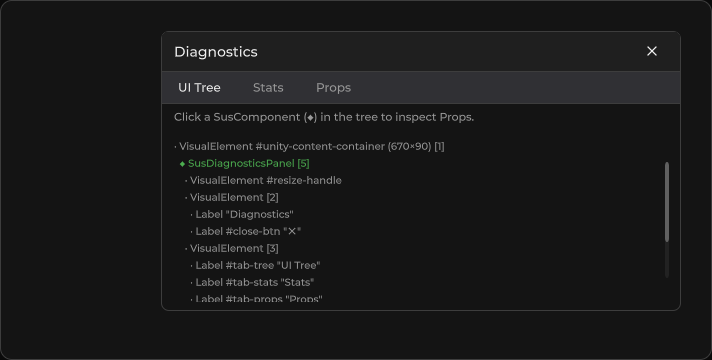

Tabs: UI Tree · Stats · Props — click a SusComponent (◆) in the tree to inspect props.
Intended for Editor / Development builds; not a buyer runtime surface.
Resize via the left-edge handle; close control sets Visible=false.
